Launch X-431 PAD VII PAD 7 with ADAS Calibration Automotive Diagnostic Tool Support Online Coding and Programming with 2 Years Free Update Free Shipping
Launch X431 PAD VII is an unexpected high-end professional diagnostic tool with LAUNCH Innovation technology, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions such as videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types. X431 Pad V offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software.
1. With two Year Free Update Online
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S, Asian and European markets over 110 brands, which is continually updated
7. 32 Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming Till Year 2021: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can't perform in United States, Canada and Spain)
9. Guided Function for VW and AUDI
10. Support ADAS calibration Function and Eight Extended Mudule: videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester.
11. Build-in repair information and training video modules help to track and fix issue fast.
12. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
Superior Hardware Make Diagnosis Faster Than Ever
Launch X431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever. The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.
Launch X431 Pad VII Functions:
1. ALL System Diagnosis
Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly
BI-Directional Control [Active Test]
Check the DTCs and all systems communication status visually by topology module mapping function
2. 32 Service Functions:
Service Lamp Reset
Nox Sensor Reset
3. Advanced ECU Coding and Online Coding
J2534 ECU + Programming
Flash Hidden Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service
4. ADAS calibration Function and Extend 8 Module Functions
Optional ADAS calibration function increases more revenue.
X431 PAD VII also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
5. More Advanced Functions:
Launch X431 PAD VII Vehicle Coverage:
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Optional):
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Smartlink C VCI
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
Comparison Table for Launch X431 PAD VII, PAD V and PAD III V2.0:
|Launch PAD III V2.0||Launch PAD V||Launch PAD VII|
|Display||10.1'' / IPS 1920*1200||10.1'' / IPS 1920*1200||13.3'' / 1920 x 1080 IPS|
|CPU||2.0GHz Octa-core||2.0GHz Octa-core||2.0GHz Octa-core|
|Memory||2 GB||4 GB||8 GB|
|Storage||64 GB||64 GB||256 GB|
|Camera||8MP Rear + 2MB Front||13MP Rear + 8MB Front||13MP Rear + 8MB Front|
|VCI Connector||DBScar IV||Smartbox 3.0||Smartlink C|
|VCI Connection||Bluetooth||2.4GHz & 5GHz dual WiFi||2.4GHz & 5GHz dual WiFi|
|Adjustable Supporting Holder||●||●||●|
|IP65 Waterproof & Dustproof||●||●|
|Quick Charge Technology||●||●|
|PUSH PUSH Design|
|Size (mm)||317 * 202 * 53||320 * 211 * 46||353 * 236 * 71|
|Operating System||Android™ 5.1.1||Android™ 7.1||Android™ 9.0|
|Full System Diagnosis||●||●||●|
|OBD II Full Function||●||●||●|
|Tech-to-Tech Remote Diangosis||●||●||●|
|Smartlink Remote Diagnosis||●|
|Auto VIN Identification||●||●||●|
|VW & AUDI Guided Function||●||●||●|
|Complete TPMS Service||with X-431 TSGUN||with X-431 TSGUN||with X-431 TSGUN|
|Advanced Key Programming||with X-PROG 3||with X-PROG 3||with X-PROG 3|
|Vehicle Coverage||Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)||Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)||Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)|
|Service Functions||21||26||32 by local diagnosis|
Get More by Smartlink Remote Diagnosis
|Elec. Throttle RLRN||●||●||●|
|Nox Sensor Reset||●||●||●|
|Seats Call Bration||●||●||●|
|AC System Relearn||●|
|Engine Power Balance Monitoring||●|
|Rotation Angle Sensor Calibration||●|
|High-Voltage Battery Health Detection||●|
|More Reset Services||Via Smartlink Remote Diagnosis|
|X-431 ADAS PRO||●||●||●|
|X-431 ADAS Mobile||●||●||●|
|X-PROG 3 Immobilizer||●||●||●|
|BST360 Battery Tester||●||●||●|
|X-431 TSGUN TPMS device||●||●||●|
|X-431 O2-1 Osciloscope||●||●||●|
|X-431 S2-2 Sensorbox||●||●||●|
|HD III Module||●|
|Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools|
Smartlink Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands.
Launch X-431 PAD VII Specification:
X-431 PAD VII
13.3' touch screen 1920*1080
3.5' touch screen 320*480
Rear 13MP, Front 8MP
Dual Band 2.4 & 5GHz
Dual Band 2.4 & 5GHz
WiFi & BT & USB
It has nice functions, it did things for me on Mercedes especially the online scn coding and variant coding is great much more than im608. Also on old Volkswagen I could never read DTC from it with im608 or other tools but pad 7 do it easy.

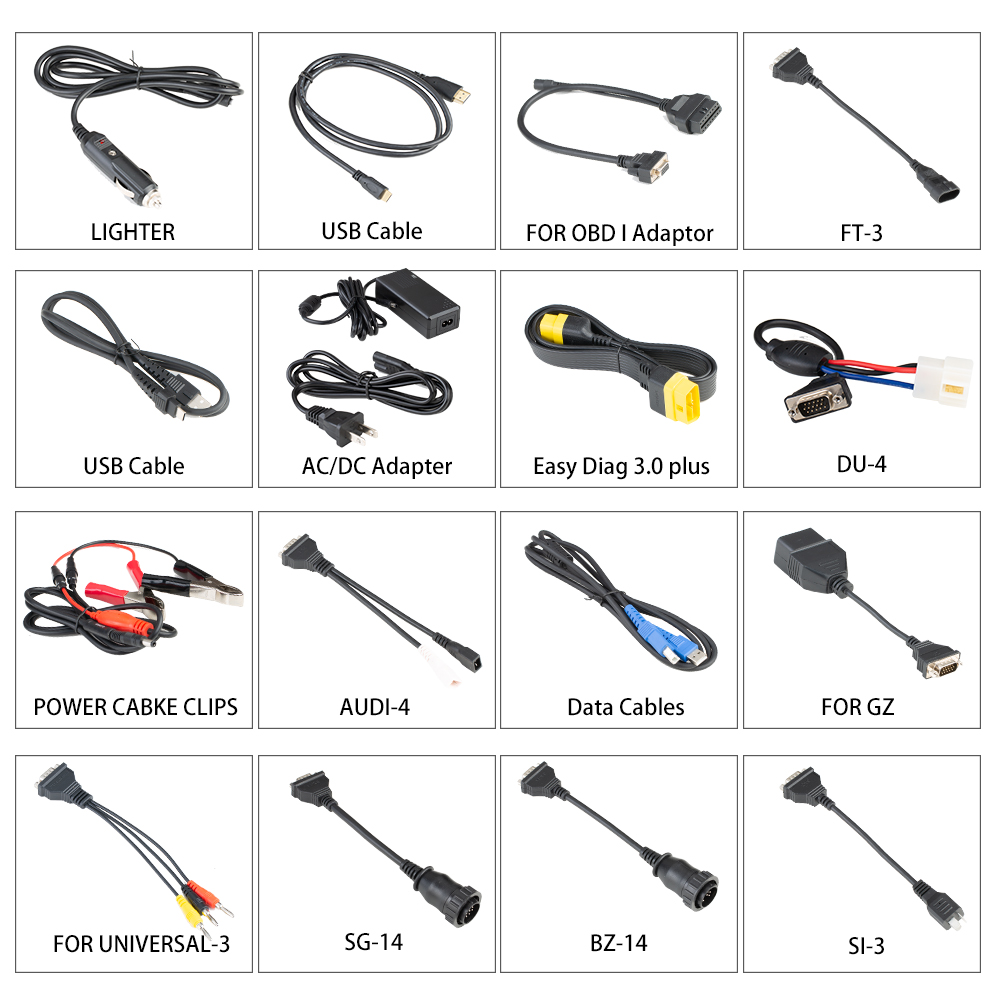

Launch X431 Pad VII Package List:
1x X-431 PAD VIImain unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set
